While setting up networks, selecting either a network bridge or network switch is pivotal for efficient performance. These two devices both join network segments and carry out communication; however, each has a particularly individual purpose. Our following article provides you with a basic distinction between the two to help you choose a network bridge or switch that will best meet your needs.
What is a

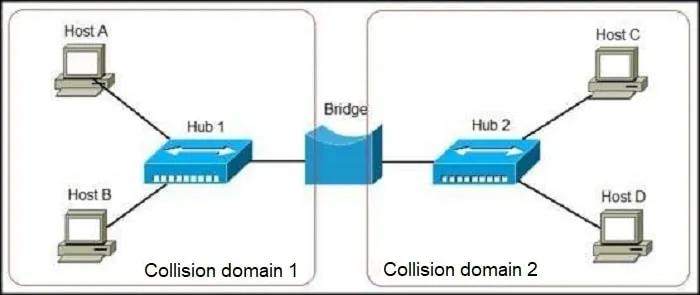

A network bridge is a system that connects two or more network segments to act as a single network and functions in Layer 2 of the OSI model for data link layer operation, filtering and forwarding traffic based on MAC addresses.
Key Features of a Network Bridge:
- Two network segments are now linked to act as one.
- It will let some traffic pass through based on MAC addresses toward the receiving interface.
- Collision domains decrease but are never eliminated.
- Traffic is mediated and specifically directed in order to provide optimal network performance.
- Primarily aimed at small network architectures or is used to link legacy systems.
What is a Network Switch?

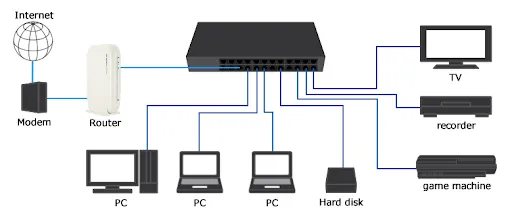

A network switch is a fancy kind of network equipment used to leverage connection among numerous devices inside a local area network (LAN). It functions at Layer 2, the data link, although it can also extend to Layer 3, the network when routing is needed.
Key Features of a Network Switch:
- The switch can connect many devices together by offering a multitude of ports.
- Switches build up a MAC address table so as to forward network traffic towards the right direction.
- Connections in a switch originate from differe? MAC addresses and form collision domains, so the latter do not take place because they are differing entities.
- While most switches support VLANs, some switches support only one VLAN, thereby securing data for added performance.
- Suitable for networks at both small and large-scale networks.

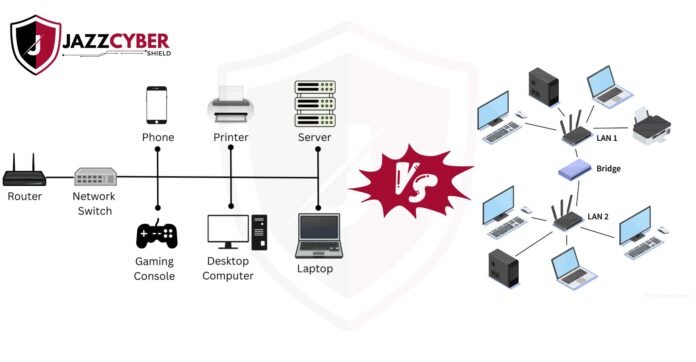

Network Bridge vs. Switch: A Detailed Comparison
| Feature | Network Bridge | Network Switch |
|---|---|---|
| OSI Layer | Layer 2 | Layer 2 (and Layer 3 for managed switches) |
| Functionality | Connects two networks to function as one | Connects multiple devices within a network |
| Collision Domain | Reduces but does not eliminate | Eliminates completely |
| Performance | Limited scalability | High scalability and efficiency |
| Traffic Filtering | Basic filtering using MAC addresses | Advanced filtering and switching |
| Ideal Use Case | Small networks, legacy integrations | Scalable enterprise and home networks |
When to Use a Network Bridge
Consider using a network bridge when:
- You need to connect two separate network segments.
- You want to extend an existing network without requiring a full upgrade.
- Your network requires basic traffic filtering.
When to Use a Network Switch
A network switch is the best choice when:
- You need to connect multiple devices in a high-performance LAN.
- Your network requires fast data transmission and efficiency.
- You want to implement VLANs and advanced network security.
Final Thoughts: Which One Should You Choose?
If you are expanding a small-scale network, then a network bridge should suffice. For modern networking needs which require speed, scaling, and security, the switch may be the best choice.
Among several other network solutions, Jazz Cyber Shield provides a series of advanced switches and bridging products from various vendors. Try searching our businesses for providing networking devices from top industry suppliers if you are to do some planned networking upgrades.
