There are unique channels through which one set of computer networks can interoperate with another. In essence, a gateway is a bridge that allows data to be passed from one network to another that may use different protocols or different architectures. In short, it introduces the concept of interoperability into another domain. Thus we are able to study the inner working of a gateway connection or its functions and importance in the networking scenario today.
Understanding the role of a gateway
It is a node in the network that acts as an access point to another network. Such access point can be a router, a firewall, a server, or even any other device that enables the flow of traffic into and out of a network.
The main functions of a Gateway connection are:
1. Protocol Translation:
- The gateways can translate between different network protocols. For example, a gateway can transform data from TCP/IP (used on the internet) into some other protocol used on a local area network.
- This is very important when networks with different communication standards need to interact.
2. Translation of network addresses (NAT):
- It is typically a function of gateways to translate an internal private IP address in a local area network (LAN) to one public IP address.
- This allows many devices connected to the local network to share a single internet connection, improving the security level and obtaining a better utility of public IP addresses.
3. Traffic Routing:
- A gateway routes traffic from one network to another on the best path available, so that data packets can reach a destination.
- This includes looking at the destination address and the information in the routing table for a routing decision.
4. Security and Firewall Features:
- The gateway is a firewall filtering the traffic incoming/outgoing for protecting the network from unauthorized access and malicious attacks.
- The gateway can also have access control list (ACL) and other means to secure the network.
5. Load Balancing:
- Gateways in large networks distribute the multiple server or network links so as not to overload them, thus ensuring high availability.
- The resources can be optimised for better performance and reliability when moderate load balancing is done across the available resources.
Gateways connection types:
Default Gateway: Default gateway is given as the name to the local node of the network through which the device accesses other networks outside its network. In most cases, it is a router.
Application Gateway: An application works at the application layer of the OSI model, providing application-specific functions for specific applications such as web traffic or e-mail.
Cloud Gateway: Cloud gateways provide communication between on-premise networks and cloud environments that enable hybrid cloud deployments.

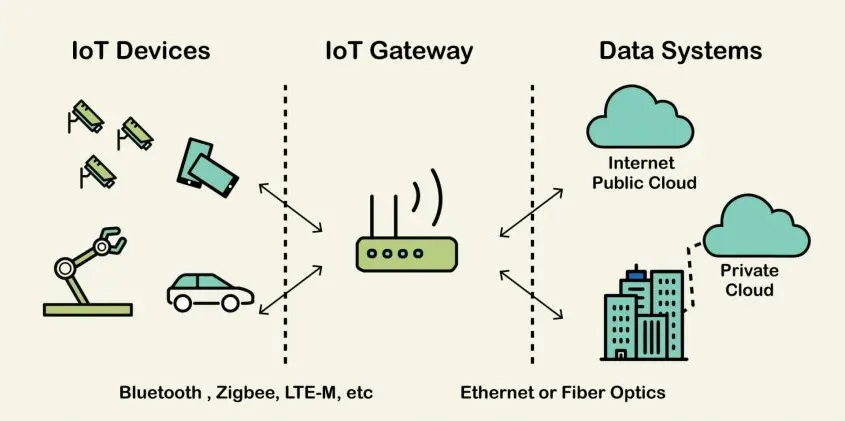

IoT Gateway: IoT gateway in the internet of things connects with the given IoT devices directly to the internet or any other networks that collect and process data from several IoT devices.
Gateway Connection Advantages:
- Interoperability: This property allows for communication between disparate networks.
- Security: Firewalls and the NAT provide securing mechanisms to the networks, hence adding security levels.
- Efficiency: Improving network traffic routing efficiency and load balancing.
- Scalability: Catering to large networks and hybrid cloud environments.
Conclusions:
Gateway connections are an integral part of communication to ensure the safety and security of modern computer networks. A proper understanding of the functions and types of gateways will add profit to the network infrastructure since they can be optimized for better performance, reliability, and economy.
