Solid State Drives are possible life-changing options, especial when it comes to data storage. SSDs have increased speed and performance compared to the traditional Hard Disk Drives. It can be challenging to put these words together in meaningful sentences with various words between terms such as “The Ultimate SSD Comparison SATA, M.2, and NVMe” however, the guide you are about to read will explain everything about those terms and then help you find the best SSD for your needs.
Understanding the Basics: What is an SSD?
First, let’s recap an SSD before getting into it. An SSD, as opposed to HDDs spinning platters, is the memory storage device of all interconnected flash memory chips. Because of that, there is no mechanical movement, which results in:
Faster speed in read and write operations: Faster booting times, application loads, and file transfers.
More durability: Against shocks and vibrations.
Lowered power consumption: Better battery life with laptops.
Silent operation: There are no moving parts, hence no noise.
The Interface Matters: SATA, M.2, and NVMe Their Differences Defined
The Ultimate SSD Comparison are realized in the different types of solid-state drives: Storage Devices Interface: which defines how they connect to your system; and Protocol: which includes how fast they transfer data.

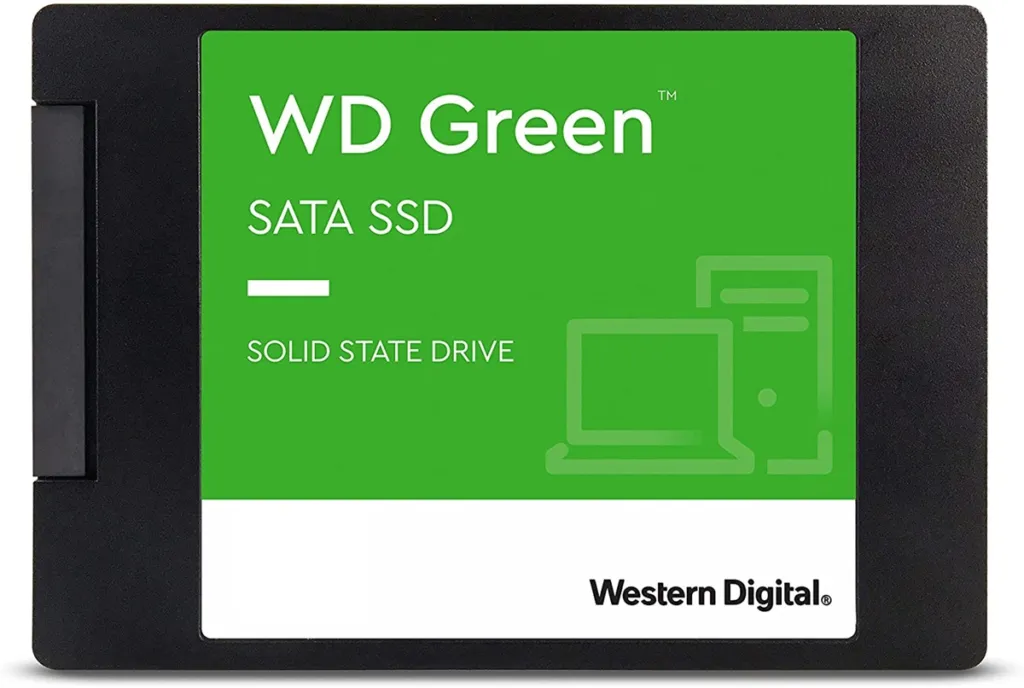

1. SATA (Serial ATA): The Old Technology
Interface: SATA is the most mature and widely recognized interface for connecting storage devices.
Form factor: Usually 2.5-inch drive.
Protocol: Used AHCI (Advanced Host Controller Interface).
Speed: SATA III, the latest version, states a maximum theoretical speed of 6 Gbps (about 550 MB/s).
Pros:
- Most compatibility applications to nearly all systems.
- Cost-effective.
- Easier installation.
Cons:
- Lower speed than other technologies.
- SATA interface bottlenecked.
Applications: For budget-minded individuals, upgrading older systems, and everyday storage.

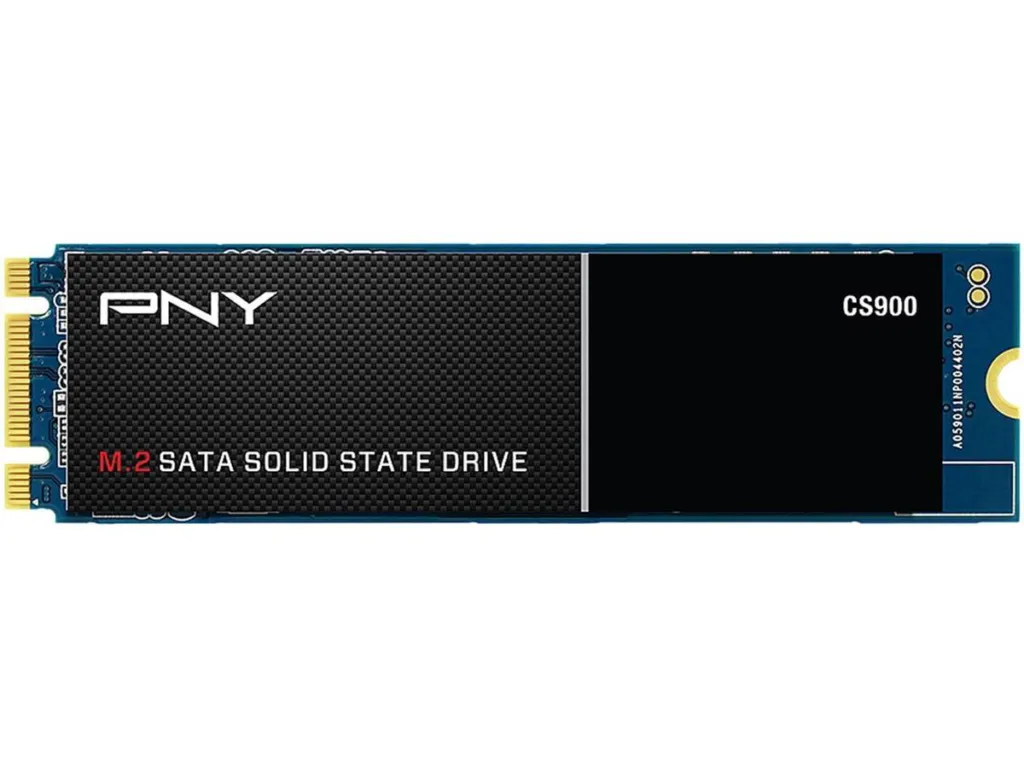

2. M.2- The Multifunctional Form Factor
Form Factor: M.2 signifies a tiny rectangular form factor designed to accommodate many interfaces and protocols.
Interface: M.2 slots will accept SATA and PCI-E interfaces.
Protocol: Either AHCI (SATA) or NVMe (PCIe) can be employed.
Speed: Varies according to the interface and protocol. M.2 SATA SSDs are limited to SATA III speeds; conversely, M.2 NVMe SSDs can attain speeds many times higher.
Pros:
- Compact, requiring little space.
- Works with either SATA or PCIe.
- Variable performance.
Cons:
- Compatibility can be pretty confusing (better check your motherboard to verify that it supports the required interface and protocol).
- Some M.2 drives can run hot.

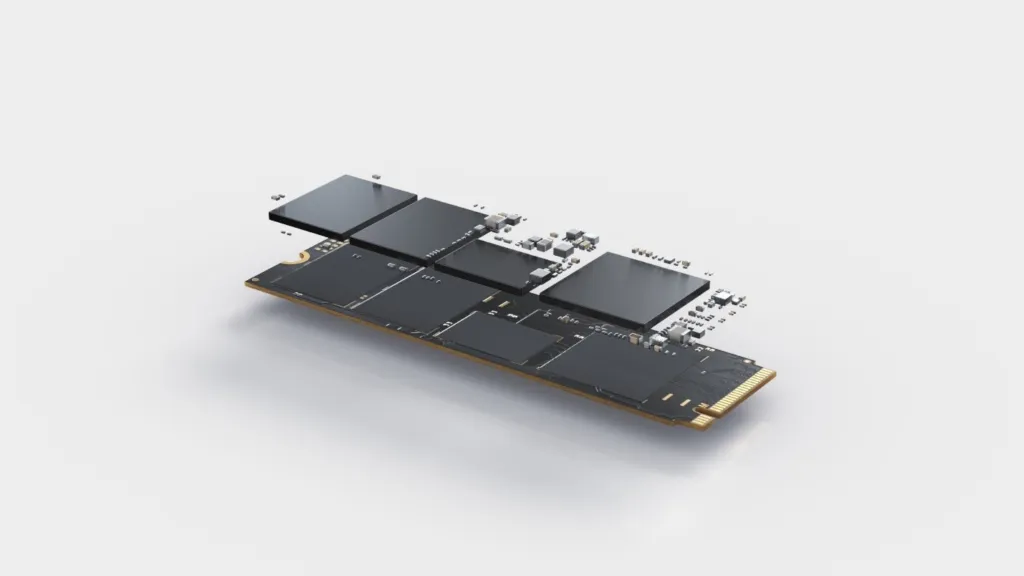

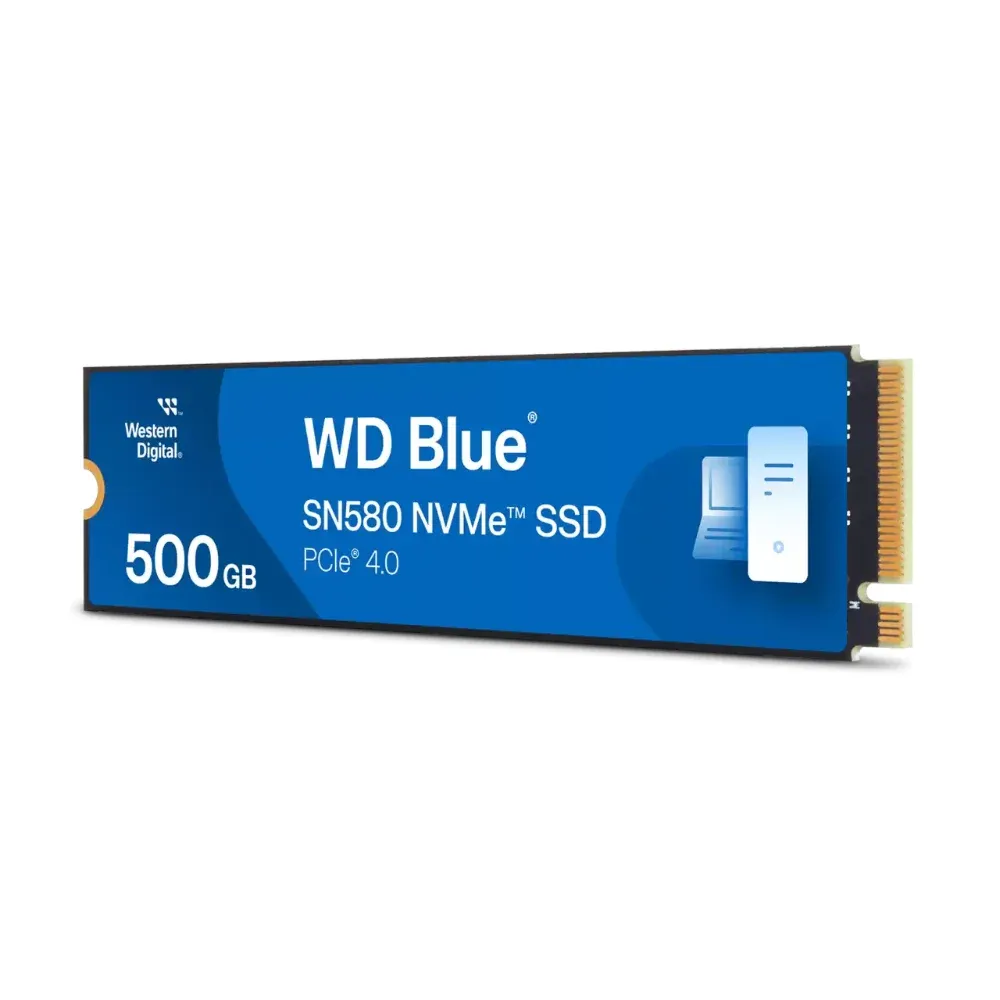

3. NVMe (Non-Volatile Memory Express): The Speed King
Protocol: NVMe is a high-performance protocol precisely optimized for flash memory.
Interface: PCIe (Peripheral Component Interconnect Express).
Form Factor: Mainly utilized in M.2 slots, but also available in PCIe add-in cards.
Speed: NVMe can get to speeds reaching a couple of gigabytes in a second, which is many times faster than a SATA SSD.
Pros:
- Extremely fast read/write speeds.
- Very low latency.
- Optimized for modern workload.
Cons:
- More expensive than SATA SSDs.
- Requires a motherboard with an NVMe-compatible M.2 slot or PCIe slot.
- It tends to heat up a lot.
Use Cases: Demand application-oriented-think gaming, video editing, 3D rendering, and data analysis.
Key Differences Summarized:
| Feature | SATA | M.2 (SATA) | M.2 (NVMe) |
| Interface | SATA | SATA | PCIe |
| Protocol | AHCI | AHCI | NVMe |
| Speed | Up to 550 MB/s | Up to 550 MB/s | Up to several GB/s |
| Form Factor | 2.5-inch | M.2 | M.2 |
| Cost | Low | Medium | High |
Choosing The Right SSD That Meets Your Preferences:
Your Budget: If your budget is low, then SATA SSD is the best option.
Performance: If ultimate performance is the goal, NVMe SSD should be the option of choice.
Compatibility: Take care to check if the motherboard supports the desired interface and protocol.
Use Case: Consider your specific needs and applications. Gamers and content creators would benefit from NVMe, whereas normal users may be content with SATA.
Conclusion:
At that point, it comes to your needs and budget to select an The Ultimate SSD Comparison for the task. The SATA drives are ideally suited for basic needs and their economical prices, while the NVMe drives offer the fastest speeds for demanding tasks. M.2 is simply the nature of the form factor supporting it, so it does not have its own ‘kind’. Ultimately, what is more important – speed or price? Then find out about the compatibility of your computer before making a purchase.
