A network needs to make efficient communication in any case, be it a household installation or a big corporate system. But just how do network devices such as switches and bridges know where each and every device lies? This understanding is paramount to network performance, speed, and security. Thus, this blog will elaborate upon how switches and bridges learn device locations across a network, their advantages, and the features of this process.

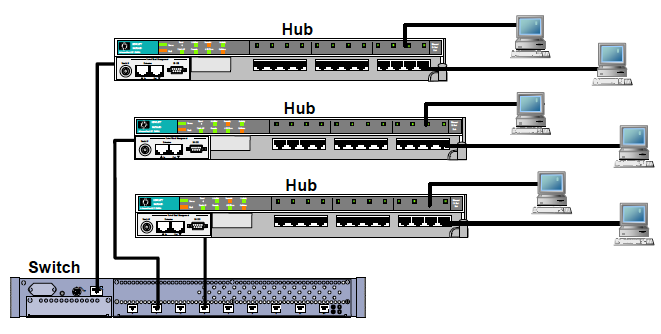

1. Learning Device Locations on Switches
Switching is an essential aspect of modern networks. The switches are intelligent devices that control traffic between devices. A switch learns device locations using MAC addresses as soon as it is connected to the network. It links out such source MAC addresses to the ports from which it receives data packets.
In addition to this, the switches maintain a MAC address table in memory. When a device communicates, the switch matches its packets against the table and sends only to the correct destination. This eliminates any unwanted traffic and increases network efficiency. This attribute works best in scenarios with heavy data traffic, where low latency and congestion are a must for enhanced performance.

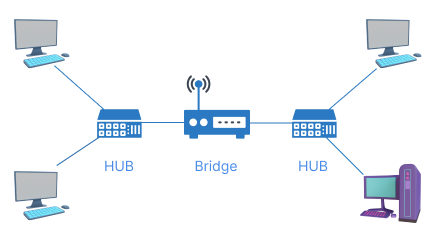

2. How Bridges Learn Locations of Devices
Although switches segment networks, bridges have the same purpose-they connect network segments. Just like switches, bridges learn device locations using MAC address learning. However, they do this at a higher level by analyzing the traffic between different network parts. When a data packet arrives from one segment, the bridge receives it and checks the destination address to discount forwarding to another segment.
Bridges also maintain a filtering table, i.e. a table showing MAC addresses and which segments they belong to. In addition, they strategically decide which traffic to allow and which to block between segments. This helps block unnecessary traffic and reduce congestion. This is best implemented in larger networks that require connectivity between several segments while controlling traffic among them.
3. The Importance of Address Tables
MAC address tables are indispensable counterparts of switches or bridges since they guarantee efficient data forwarding. The network keeps MAC addresses stored in tables so that they can be easily looked up. Dynamic learning updates these tables constantly as devices migrate from port to port or from segment to segment. This dynamic learning is ideal for networks which experience continual changes like those of mobile devices.
Another special capability the MAC address table provides is that it allows devices to learn and update new devices locations. It gives the network flexibility and scalability, as it also takes care of adding new devices without human action. This feature is essential for maintaining connectivity smoothly during fast-paced scenarios where conditions of the network would alter frequently.

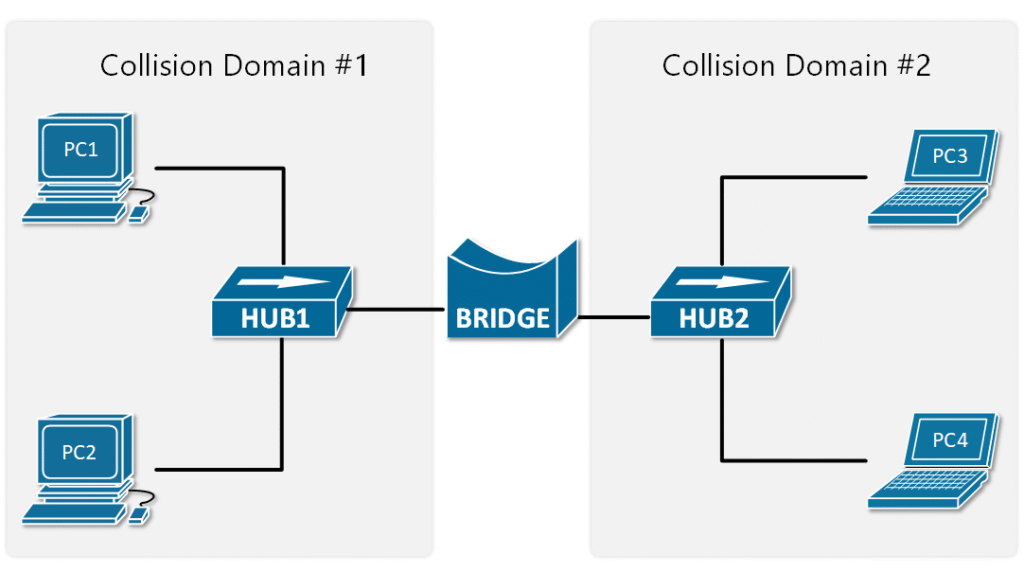

4. Collision Domains and the Role of Switches and Bridges
A bridge and a switch reduce the collision domain, where data packets collide. The switch plays a vital role in preventing packet collisions by learning the locations of the devices and sending packets to the right port. This means that it significantly eliminates the chances for packet collision-for any setting, really-which can result in poor network performance.
Bridges further help by splitting a larger network down into smaller ones, with each segment having a collision domain of its own. Using switches and bridges to create smaller collision domains is preferable when dealing with larger networks with the desire to foster data flow and reduce congestion.
5. Provides the Advantage for Switches and Bridges Learning for Device Locations
Data traffic organization for switches and bridges is MAC address learning to know the location of devices. They send traffic only where necessary and thus prevent flooding the network with unneeded traffic. That reduces unwanted traffic and increases the overall efficiency of the network. Consequently, speed is increased, and congestion is reduced. Furthermore, such dynamic learning makes the devices flexible to network changes, thus allowing seamless integration of new devices.
In short, the learning process of switches and bridges turns them into smart devices with the ability to communicate with other devices wisely and efficiently. Again, it will guarantee that every device is placed accurately to make sure that traffic can flow without unnecessary downtime. This is the best to achieve performance optimization for a network, especially when it concerns applications that need to deal quickly and well with the many traffic flows generated by reliable, scaled solutions.
Final Thoughts
We must know how switches and bridges learn the location of devices on a network so that we can understand how this contributes to optimizing network performance and efficient data flow. Both devices work through MAC address learning to learn where devices are located switches looking mostly at local traffic and bridges processing traffic over segments. Knowing this, switches and bridges can reduce network congestion, collisions in traffic, and improve basic speed and reliability.
